TKSTAR TK109

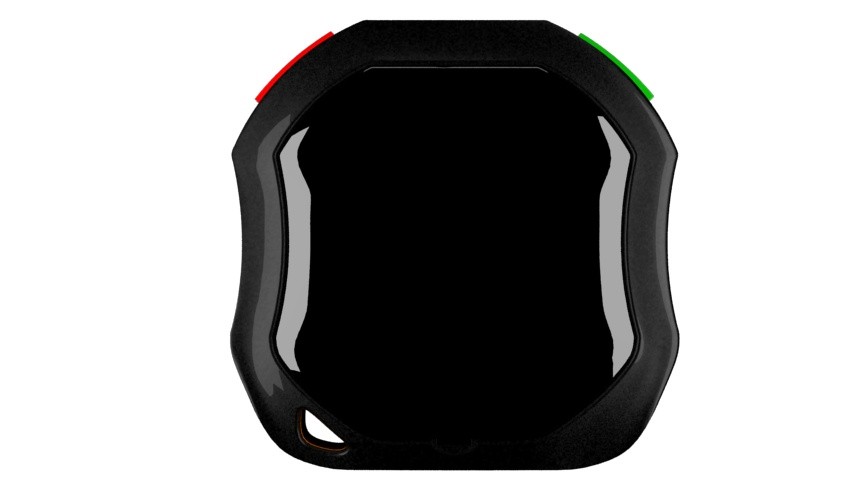

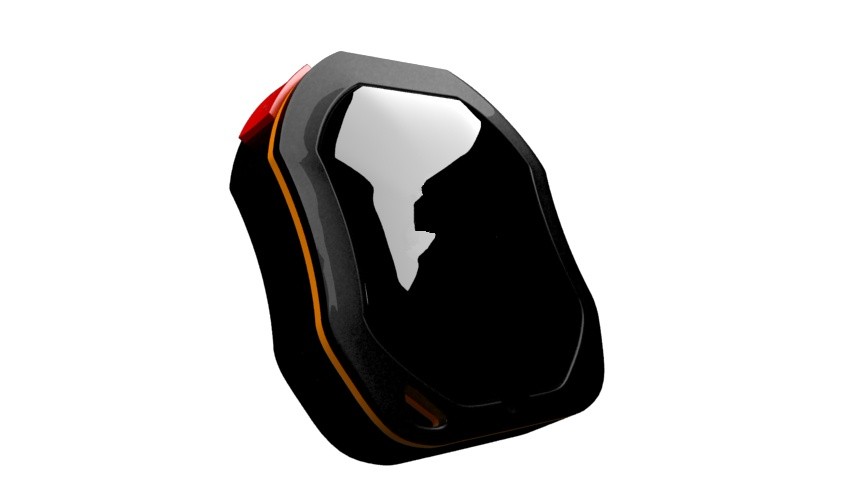

Portable GPS TRACKER TKSTAR TK109

Applications

◆Protect child / the elderly/ the disabled / pet /property etc

◆Track asset/cars/

Product Features

GPS+LBS+WIFI+BD+GLONASS LOCATION

Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.

VIBRATION ALERT

Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.

GEO-FENCE

Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.

WATERPROOF IP65

Super waterproof makes the device can be used in rainy . Never worry about that it is broken when it is rainy.

HISTORICAL ROUTES

The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.

MOVE ALERT

As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.

OVER SPEED ALERT

Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.

battery STANDBY LIFE

1000mAh rechargeable battery make sure device can be work up to 7 days.

SOS call

Thumb sized button allowing urgent call during an emergency case .

Product specs.

Content	Specs.
Dim.	50mm x 15mm x 50mm
Weight	50g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS chip	UBLOX
GPS sensitivity	-159dBm
GPS accuracy	5m
Time To First Fix	Cold status 35-80 s Warm status 35s Hot status 1s
Car charger	12—24V input 5V output

Wall charge	110－220V input 5V output
Battery	Rechargeable 3.7V 1000mAh Li-ion battery
Standby	7 days
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +55°C
Humidity	5%--95% non-condensing
