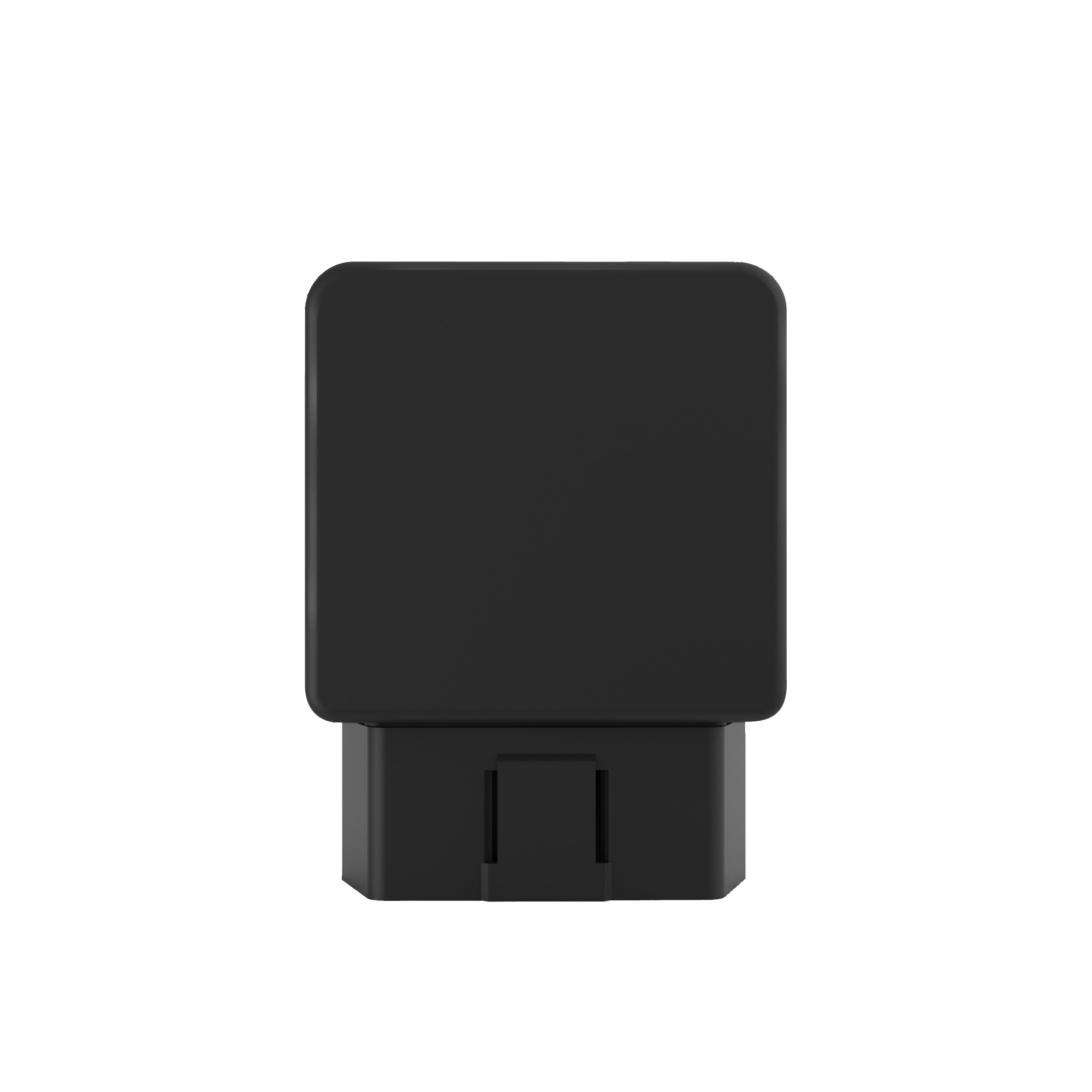

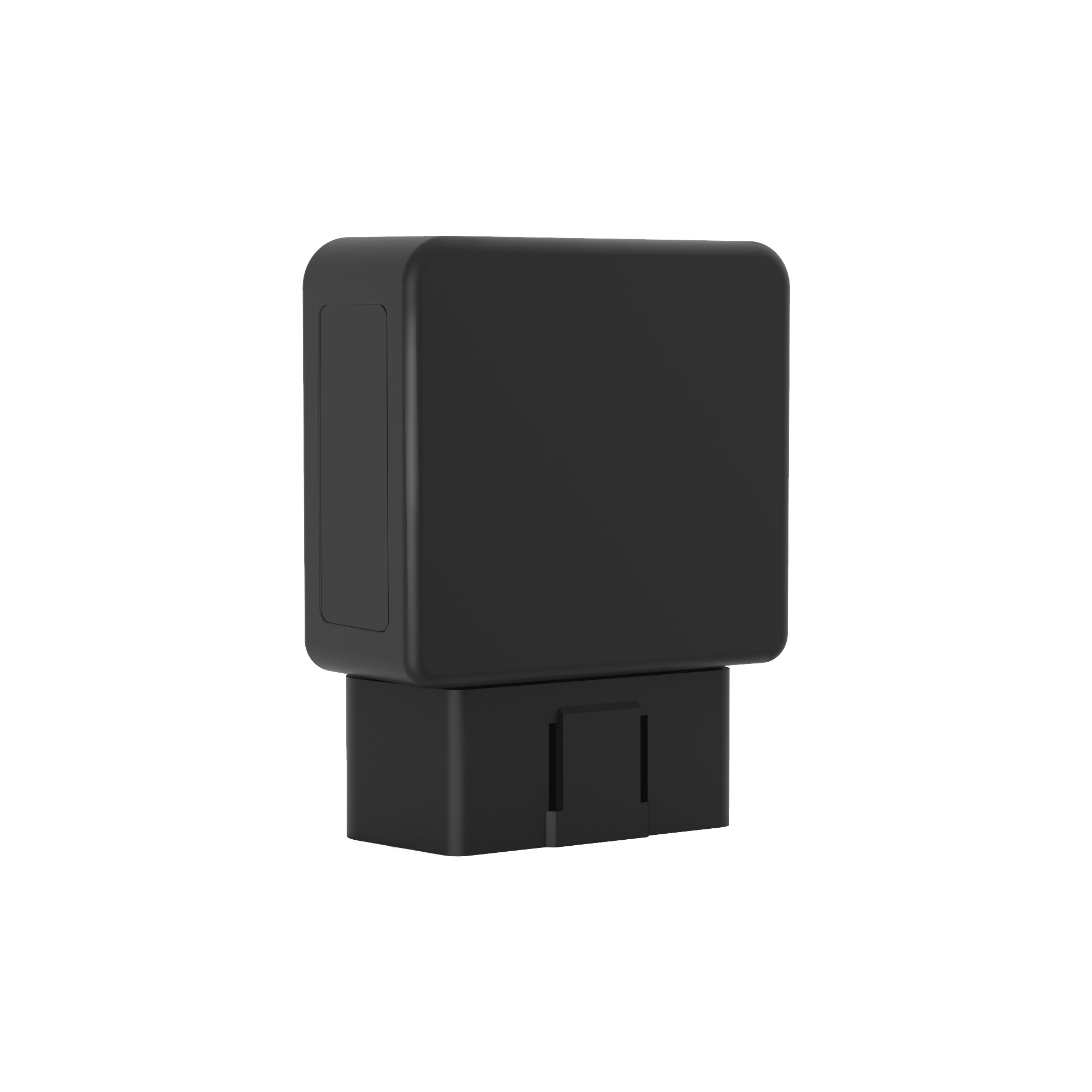

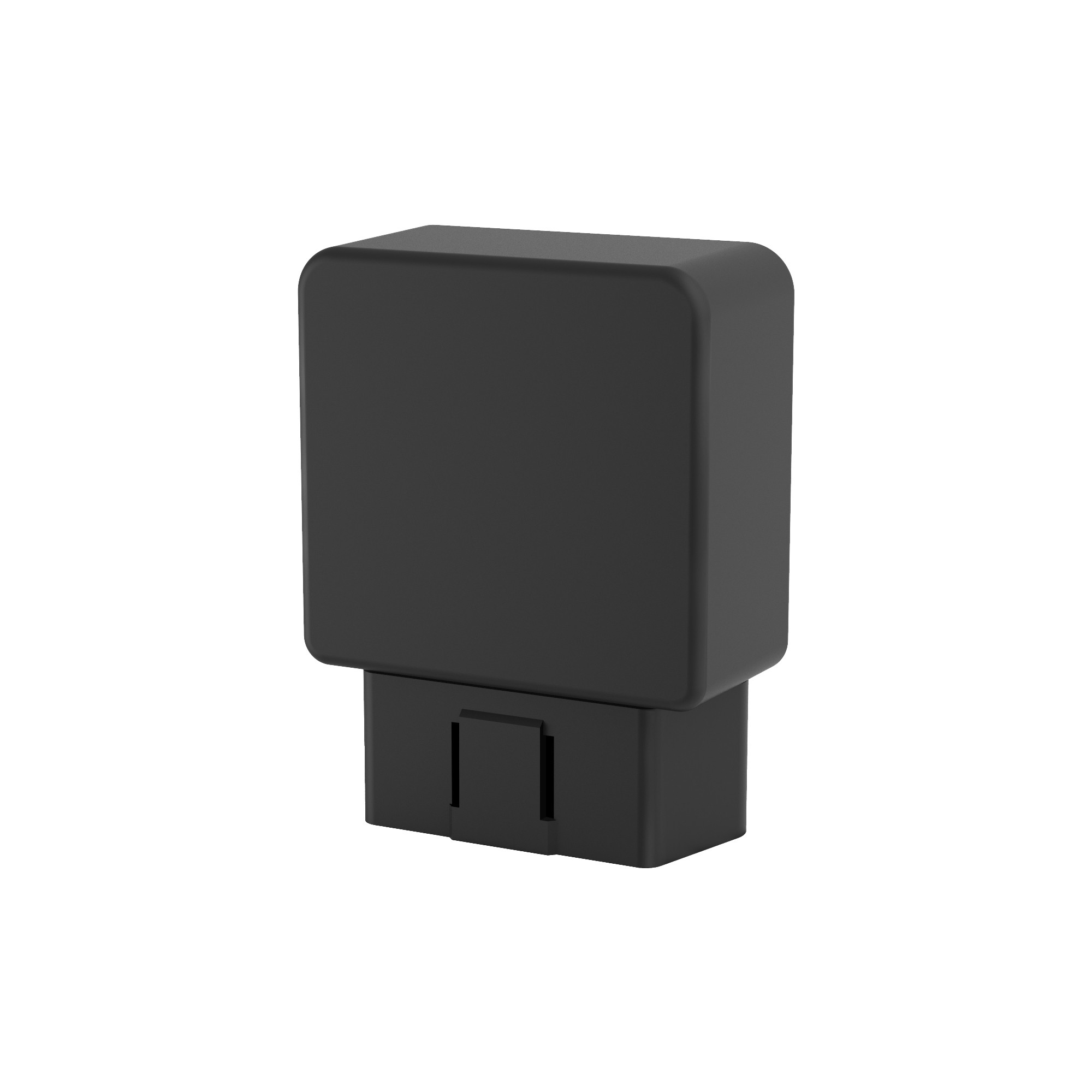

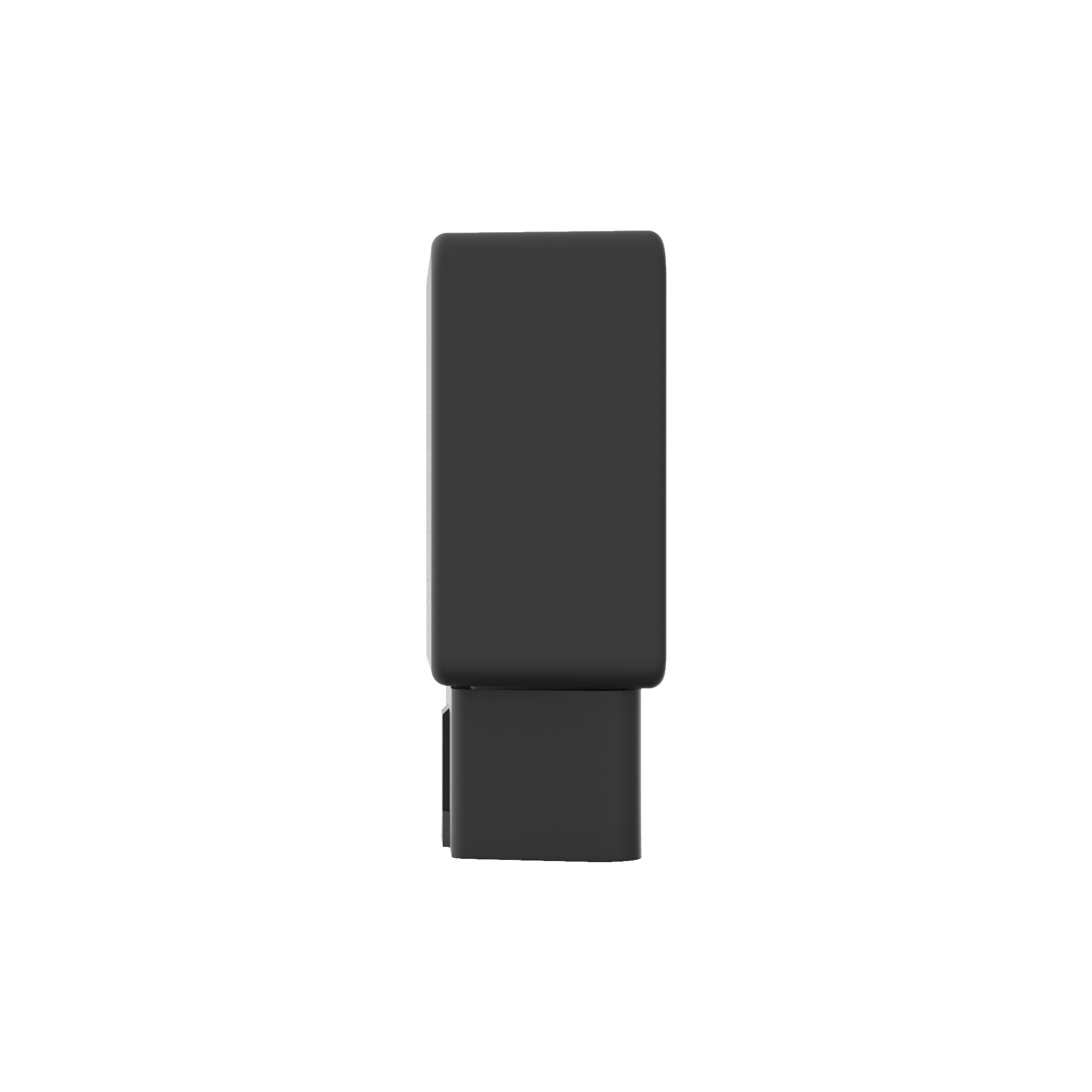

TK980 4G OBD2

Plug and play 4G OBD2 GPS tracker can read car parameters, remotely track your car's health

Applications


◆Track Private cars/Vehicle rental /Fleet management/ Equipment outside etc

◆Track container/cargo



Product Features




GPS+LBS+WIFI+BD+GLONASS LOCATION

Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.




VIBRATION ALERT

Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.




GEO-FENCE

Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.




WATERPROOF IP66

Super waterproof makes the device can be used in rainy . Never worry about that it is broken when it is rainy.




HISTORICAL ROUTES

The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.




MOVE ALERT

As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.




OVER SPEED ALERT

Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.



BATTERY STANDBY LIFE

60mAh rechargeable backup battery make sure device can still work once disconnected power for 2 hours.


Product specs

Content

Specs.

Dim.

58mm * 45mm * 22mm

Weight

 54g

GSM 4 band:

Europe/ Middle East/Africa/Korea/Thailand

FDD:B1/B3/B7/B8/B20/B28A

WCDMA:B1/B8

GSM:B3/B8


South America/New Zealand /Australia :

FDD:B1/B2/B3/B4/B5/B7/B8/B28

TDD:B40

WCDMA:B1/B2/B5/B8

GSM:B2/B3/B5/B8


NB+CAT M1+2G

B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/

B20/B25/B26/B27/B28/B66/B85

Cat NB2:

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/

B25/B26/B28/B66/B71/B85

EGPRS:

850/900/1800/1900 MHz

GPS chip

Chip model: ARM STM32

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status  35-80 s

Warm status  35s

Hot status  1s

Working voltage:

DC 9V -35V

Working current:

12V/73.6mA

Battery

60mAh (3.7V polymer battery) optional

Standby

2 hours

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing
