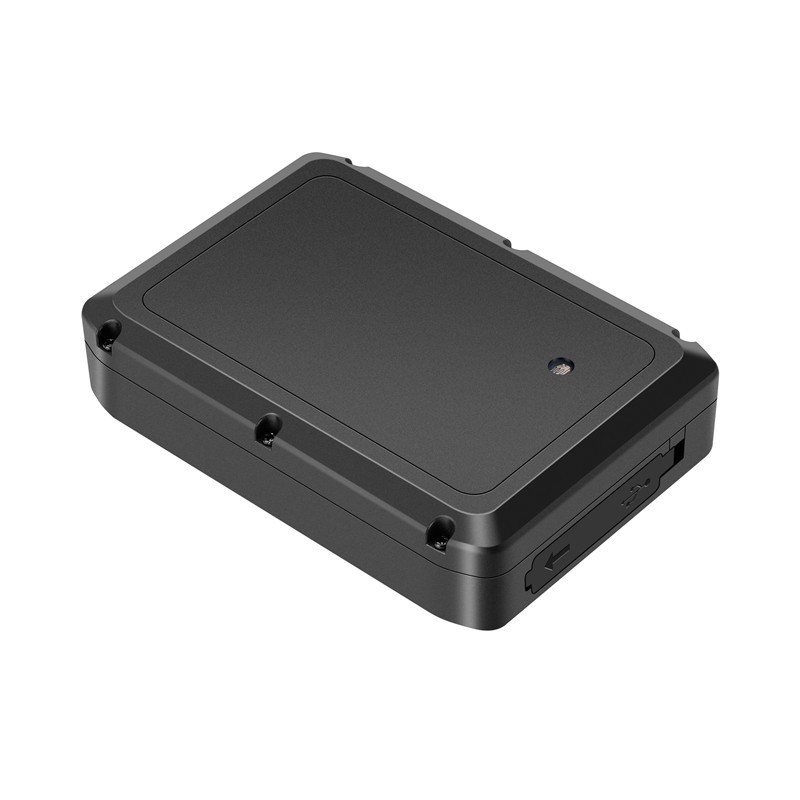

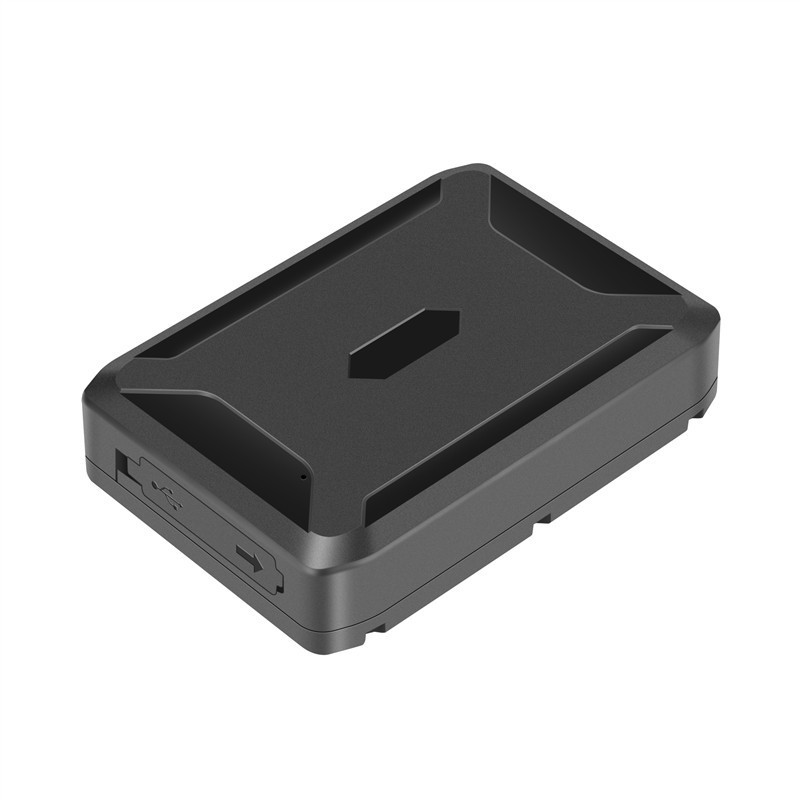

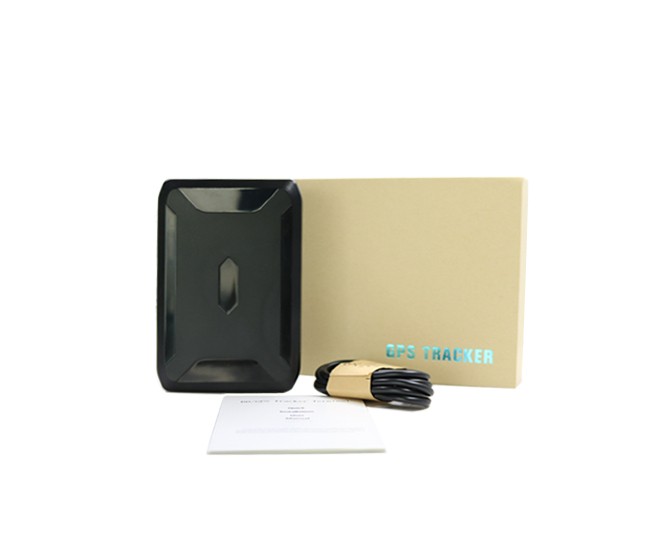

4G GPS TRACKER TKSTAR 4G TK920
Applications
◆Track Private cars/Vehicle rental /Fleet management/ Equipment outside etc
◆Track container /cargo
Product Features
GPS+LBS+WIFI+BD+GLONASS LOCATION
Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.
VIBRATION ALERT
Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.
GEO-FENCE
Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.
WATERPROOF IP65
Super waterproof makes the device can be used in rainy . Never worry about that it is broken when it is rainy.
HISTORICAL ROUTES
The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.
MOVE ALERT
As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.
OVER SPEED ALERT
Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.
BATTERY STANDBY LIFE
10000mAh rechargeable battery make sure device can be work up to 60 days.
Product specs
Content | Specs. |
Dim. | 112mm x 78mm x 26mm |
Weight | 315g |
Band&Network | Europe/ Middle East/Africa/Korea/Thailand FDD:B1/B3/B7/B8/B20/B28A WCDMA:B1/B8 GSM:B3/B8 South America/New Zealand /Australia : FDD:B1/B2/B3/B4/B5/B7/B8/B28 TDD:B40 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8 NB+CAT M1+2G B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/ B20/B25/B26/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/ B25/B26/B28/B66/B71/B85 EGPRS: 850/900/1800/1900 MHz |
GPS chip | SC9820E |
Electrostatic Protection | Touch +/-7KV Not Touch +/-14KV |
Number of channels | 66 Channels |
GPS sensitivity | -165dBm |
GPS accuracy | 10m |
Time To First Fix | Cold status 35-80 s Warm status 35s Hot status 1s |
Car charger | 12—24V input 5V output |
Wall charge | 110-220V input 5V output |
Battery | Rechargeable 3.7V 10000mAh Li-ion battery |
Standby | 60 days |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +55°C |
Humidity | 5%--95% non-condensing |
