TKSTAR TECHNOLOGY CO.,LIMITED
TKSTAR TECHNOLOGY CO.,LIMITED a leading designer and manufacturer of professional GPS Tracker/GPS Navigation and GPS wireless communications products, dedicates to bringing reliable products and customized solutions to clients across the world.

TK820

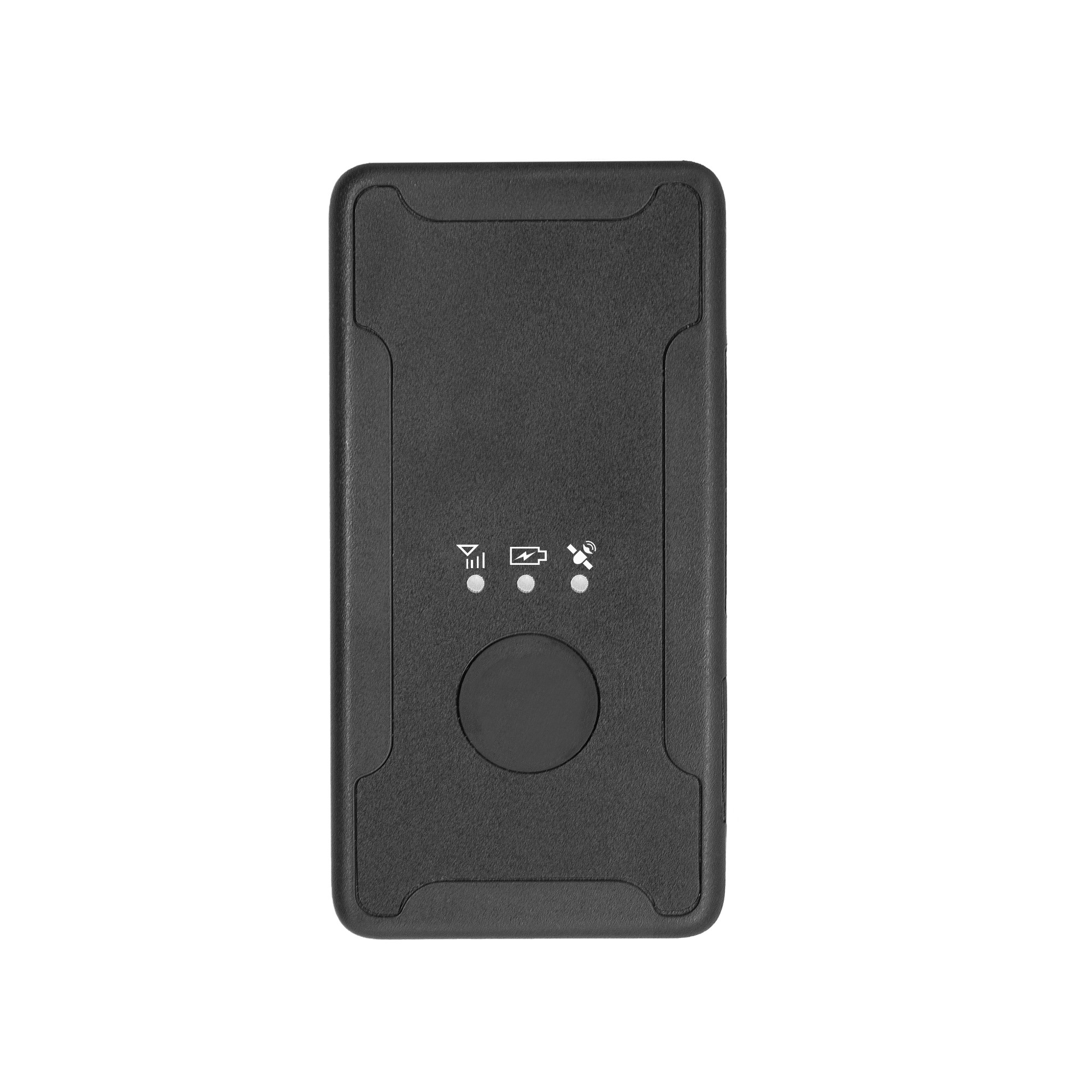

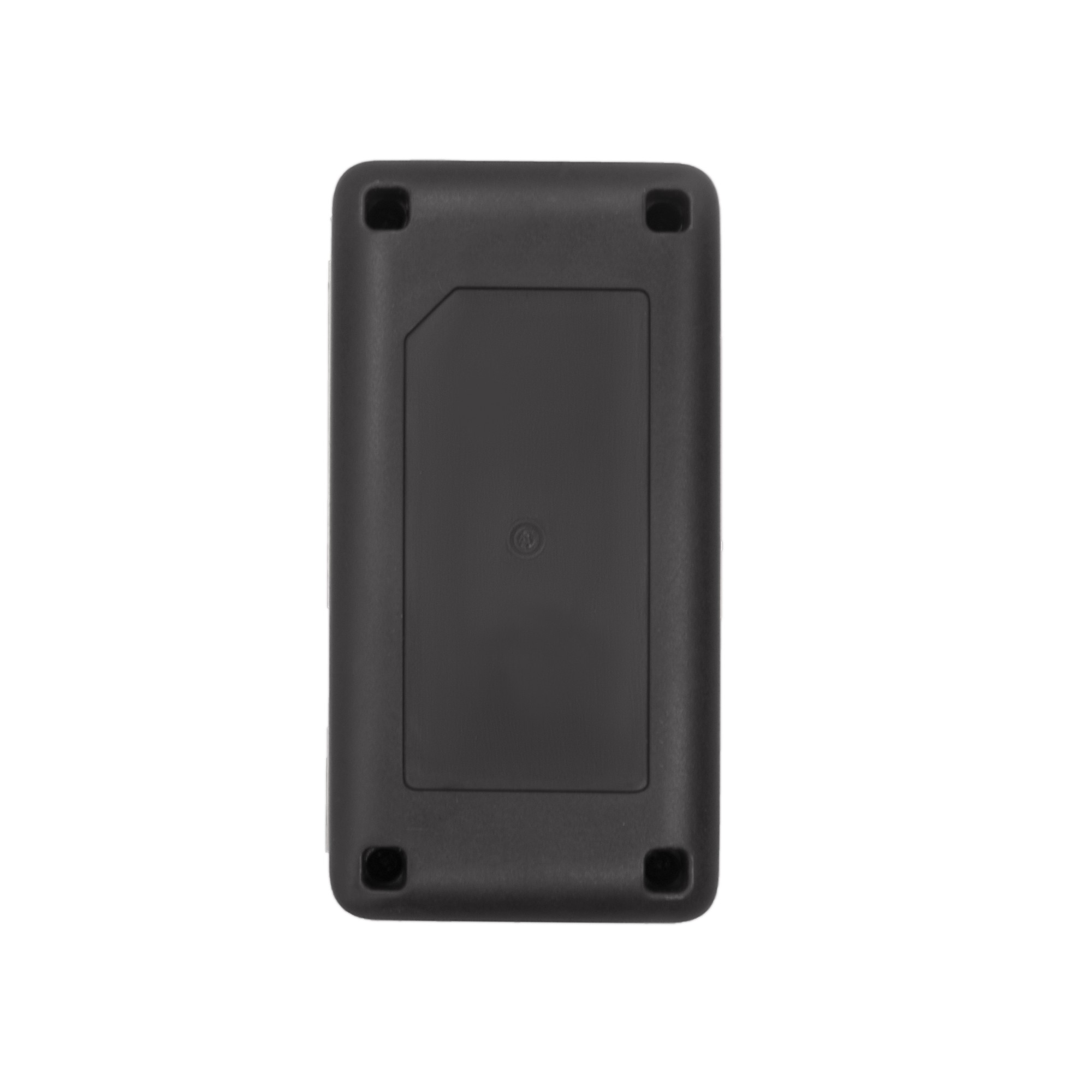

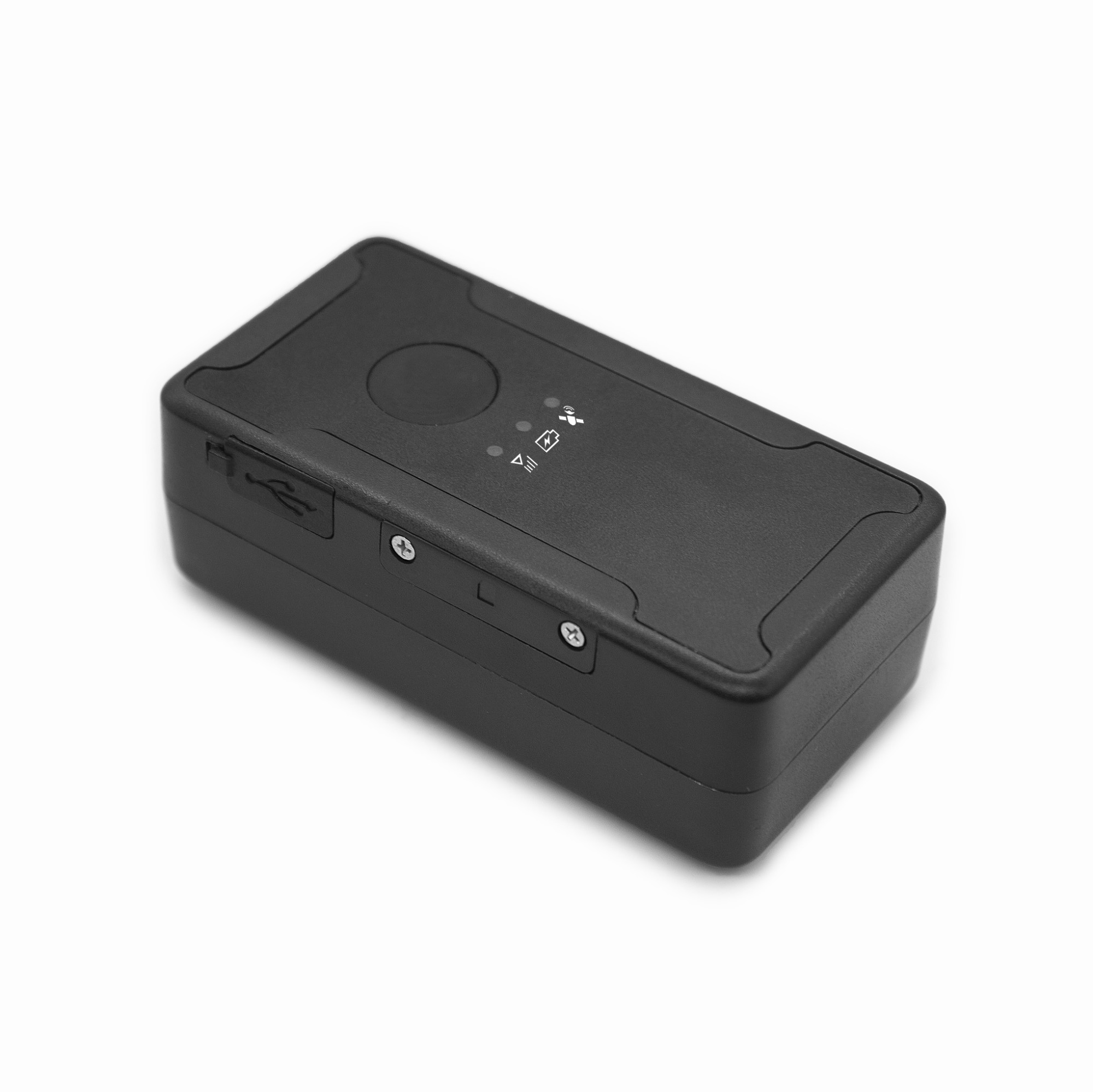

Portable 4G GPS TRACKER TK820

Applications


◆Protect child / the elderly/ the disabled /property etc

◆Track asset/cars/



Product Features



GPS+LBS+WIFI+BD+GLONASS LOCATION

Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.



VIBRATION ALERT

Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.



GEO-FENCE

Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.



WATERPROOF IP65

Super waterproof makes the device can be used in rainy . Never worry about that it is broken when it is rainy.



HISTORICAL ROUTES

The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.



MOVE ALERT

As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.



OVER SPEED ALERT

Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.



BATTERY STANDBY LIFE

3000mAh rechargeable battery make sure device can be work up to 30 days.



SOS call

Thumb sized button allowing urgent call during an emergency case .


Product specs

Content

Specs.

Dim.

78mmx 39mmx 29mm

Weight

144g

Band&Network

Europe/ Middle East/Africa/Korea/Thailand

FDD:B1/B3/B7/B8/B20/B28A

WCDMA:B1/B8

GSM:B3/B8


South America/New Zealand /Australia :

FDD:B1/B2/B3/B4/B5/B7/B8/B28 TDD:B40

WCDMA:B1/B2/B5/B8

GSM:B2/B3/B5/B8


NB+CAT M1+2G

B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/

B20/B25/B26/B27/B28/B66/B85

Cat NB2:

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/

B25/B26/B28/B66/B71/B85

EGPRS:

850/900/1800/1900 MHz



GPS chip

SC9820E

Electrostatic Protection

Touch +/-7KV

Not Touch +/-14KV

 Number of channels

66 Channels

GPS sensitivity

-165dBm

GPS accuracy

10m

Time To First Fix

Cold status  35-80 s

                                                                 Warm status  35s

                                                                  Hot status  1s

Car charger12—24V  input    5V   output
Wall charge110220V  input  5V  output
BatteryRechargeable 3.7V 3000mAh Li-ion battery
Standby30 days
Storage Temp.-40°C to +85°C
Operation Temp.-20°C to +55°C
Humidity

5%--95% non-condensing
