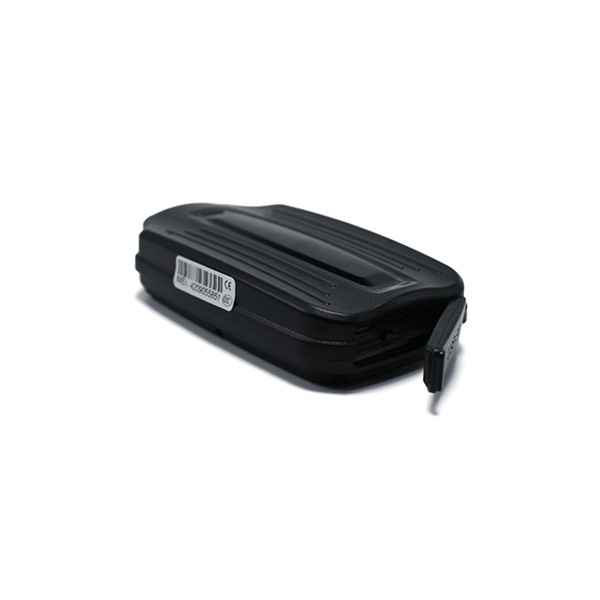

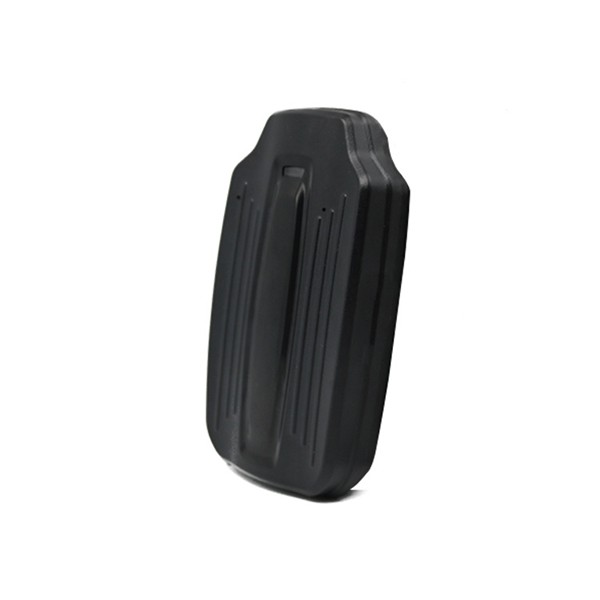

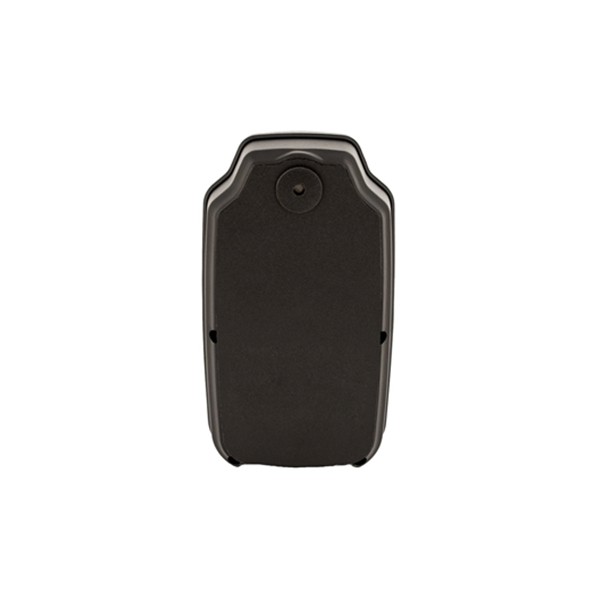

TK209A

4G Long battery life GPS Tracker with 5000mAh

Applications


◆Track Private cars/Vehicle rental /Fleet management/ Equipment outside etc

◆Track container/cargo



Product Features



GPS+LBS+WIFI+BD+GLONASS LOCATION

Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.



VIBRATION ALERT

Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.



GEO-FENCE

Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.



WATERPROOF IP65

Super waterproof makes the device can be used in rainy . Never worry about that it is broken when it is rainy.



HISTORICAL ROUTES

The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.



MOVE ALERT

As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.



OVER SPEED ALERT

Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.



BATTERY STANDBY LIFE

5000mAh rechargeable battery make sure device can be work up to 15 days.




Product specs.

Content

Specs.

Dim.

115mm x 64mm x 25mm

Weight

175g

Band&Network

North America:SIM7600A

LTE-FDD:B2/B4/B12

WCDMA:B2/B5


Europe/ Middle East/Africa/Korea/Thailand:SIM7600E

LTE-FDD:B1/B3/B5/B7/B8/B20

LTE-TDD:B38/B40/B41

WCDMA:B1/B5/B8

GSM:900/1800 MHz


South America/New Zealand /Australia :SIM7600SA

LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28

LTE-TDD:B40

WCDMA:B1/B2/B5/B8

GSM:850/900/1800/1900 MHz


CHINA:SIM7600CE

LTE-FDD:B1/B3/B5/B8

LTE-TDD:B38/B39/B40/B41

TD-SCDMA:B34/B39

WCDMA:B1/B8

GSM:900/1800 MHz

EVDO-CDMA:BC0

GPS chip

UBLOX

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status  35-80 s

Warm status  35s

Hot status  1s

Car charger

12—24V  input    5V   output

Wall charge

   110220V  input  5V  output

Battery

Rechargeable 3.7V 5000mAh Li-ion battery

Standby

15 days

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing
