Application
◆Track Motorcycle/Private cars/Vehicle rental / Equipment outside
◆Monitor company vehicles
◆Electric vehicles/ Motorcycle/Cars/Trucks/ Scooter
Product Features
GPS+LBS+WIFI+BD+GLONASS lOCATION
Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.
VIBRATION ALERT
Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.
GEO-FENCE
Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.
HISTORICAL ROUTES
The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.
MOVE ALERT
As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.
OVER SPEED ALERT
Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.
CUT OFF/RESUME CAR ENGINE
Remoting control cutting off/resume oil supply to car.
Product Specs.
Content | Specs. |

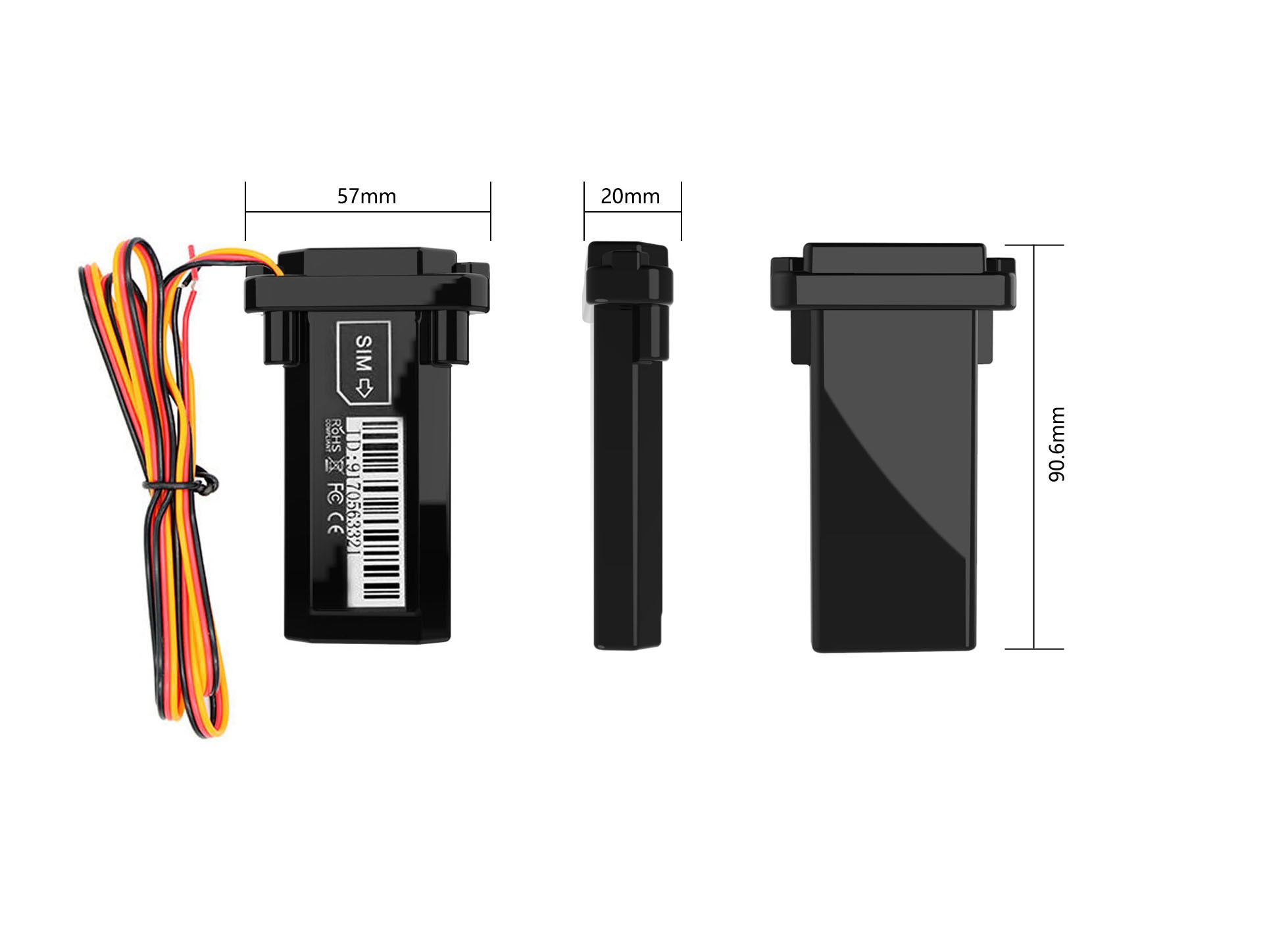

Dim. | 90.6mm * 57mm * 20mm |
Weight | 68g |
Network | 4G LTE |
Band |
Europe/ Middle East/Africa/Korea/Thailand FDD:B1/B3/B7/B8/B20/B28A WCDMA:B1/B8 GSM:B3/B8
South America/New Zealand /Australia : FDD:B1/B2/B3/B4/B5/B7/B8/B28 TDD:B40 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8
NB+CAT M1+2G B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/ B20/B25/B26/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/ B25/B26/B28/B66/B71/B85 EGPRS: 850/900/1800/1900 MHz
|
GPS chip | MT6261D |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
Time To First Fix | Cold status 35-80 s Warm status 35s Hot status 1s |
Operating Voltage | DC 9V-95V |
Battery | 140mAH (3.7V polymer battery) |
Standby | 2 hours |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +55°C |
Humidity | 5%--95% non-condensing |
