TK210

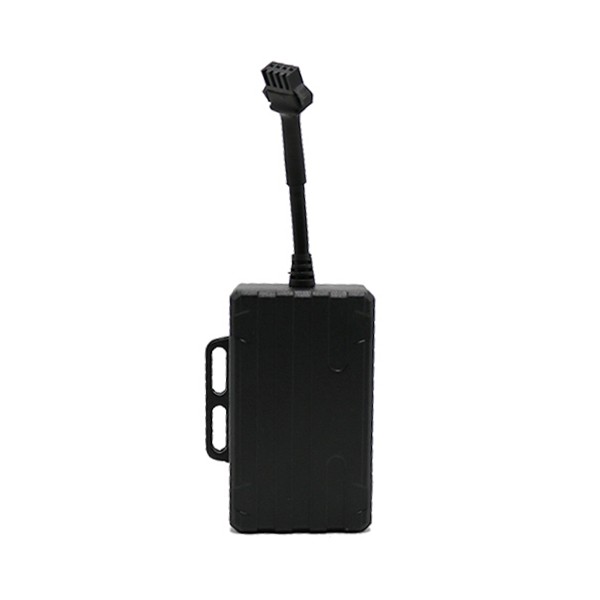

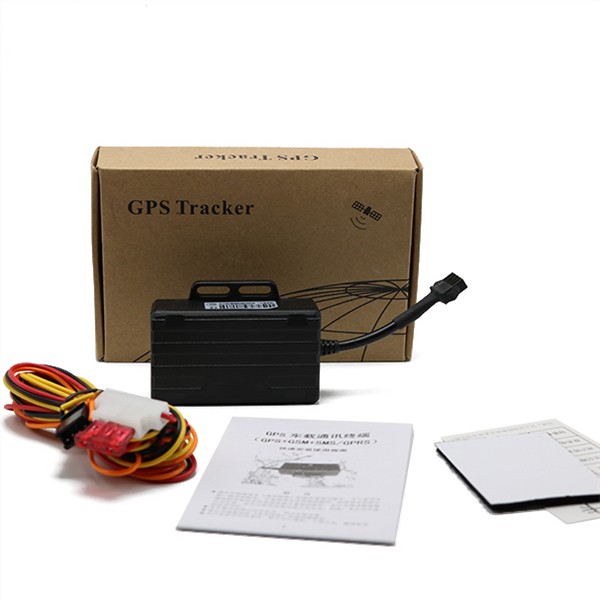

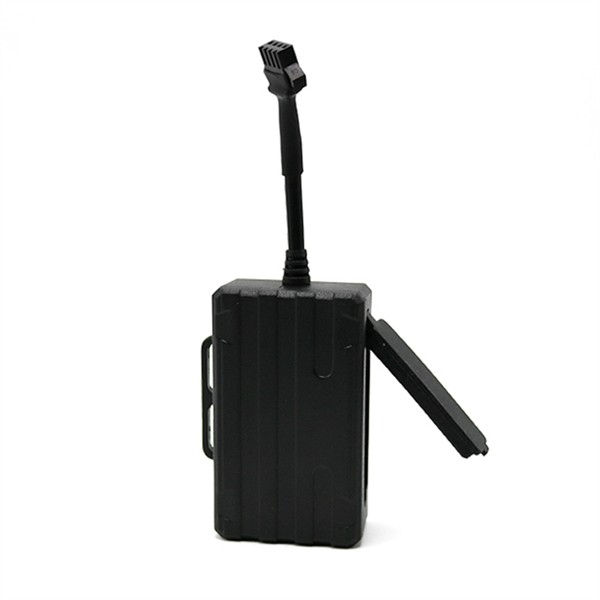

4G Android Motorcycle GPS Tracker tk210

Applications


◆Track Motorcycle/Private cars/Vehicle rental / Equipment outside
◆Monitor company vehicles

◆Electric vehicles/ Motorcycle/Cars/Trucks/ Scooter



Product Features


GPS+LBS+WIFI+BD+GLONASS lOCATION

Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.

VIBRATION ALERT

Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.

GEO-FENCE

Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.

HISTORICAL ROUTES

The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.

MOVE ALERT

As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.

OVER SPEED ALERT

Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.


CUT OFF/RESUME CAR ENGINE

Remoting control cutting off/resume oil supply to car.


Product specs


Content

Specs.

Dim.

75mm x 52mm 22mm

Weight

168g

Band&Network

FDD-LTE:B1 B2 B3 B4 B5 B7 B8 B12(17) B20 B28

TDD-LTE: B38 B39 B40 B41

WCDMA:B1 B2 B5 B8



GSM:850/900/1800/1900


GPS chip

SC9820E

Electrostatic Protection

Touch +/-7KV

Not Touch +/-14KV

 Number of channels

66 Channels

GPS sensitivity

-165dBm

GPS accuracy

10m

Time To First Fix

Cold status  35-80 s

Warm status  35s

Hot status  1s



Operating Voltage975V
BatteryRechargeable 3.7V 370mAh Li-ion battery
Standby1 days
Storage Temp.-40°C to +85°C
Operation Temp.-20°C to +55°C
Humidity

5%--95% non-condensing
